Ниппель под шланг с внешней резьбой
| Артикул | d | d1 | d2 | L | L1 | L2 | SW |
| HR 10.04 | 1/8” | 3 | 4 | 38 | 8 | 23 | 14 |
| HR 10.06 | 1/8” | 4 | 6 | 38 | 8 | 23 | 14 |
| HR 10.08 | 1/8” |
5,5 |
8 | 43 | 8 | 23 | 14 |
| HR 10.10 | 1/8” | 5,5 | 10 | 43 | 8 | 23 | 14 |
| HR 13.06 | 1/4” | 4 | 6 | 46 | 10 | 33 | 17 |
| HR 13.08 | 1/4” | 5,5 | 8 | 46 | 10 | 33 | 17 |
| HR 13.09 | 1/4” | 6 | 9 | 46 | 10 | 33 | 17 |
| HR 13.10 | 1/4” | 7 | 10 | 46 | 10 | 33 | 17 |
| HR 13.13 | 1/4” | 8 | 13 | 51 | 10 | 33 | 17 |
| HR 17.08 | 3/8” | 5,5 | 13 | 47 | 12 | 33 | 19 |
| HR 17.10 | 3/8” | 7 | 10 | 47 | 12 | 33 | 19 |
| HR 17.13 | 3/8” | 9 | 13 | 52 | 12 | 33 | 19 |
| HR 17.16 | 3/8” | 11 | 16 | 52 | 12 | 33 | 19 |
| HR 21.13 | 1/2” | 9 | 13 | 54 | 14 | 33 | 23 |
| HR 21.16 | 1/2” | 11 | 16 | 54 | 14 | 33 | 23 |
| HR 26.16 | 3/4” | 11 | 16 | 58 | 14 | 33 | 27 |
Ниппель с внешней резьбой под шланг Push Lock
| Артикул | d | d1 | d2 | L | SW |
| FHR 13-10 | G 1/4” | 5,5 | 3/8” | 28 | 17 |
| FHR 13-13 | G 1/4” | 8 | 1/2” | 28 | 17 |
| FHR 17-10 | G 3/8” | 5,5 | 3/8” | 33 | 19 |
| FHR 13-13 | G 3/8” | 8 | 1/2” | 33 | 19 |
| FHR 21-13 | G 1/2” | 8 | 1/2” | 33 | 23 |

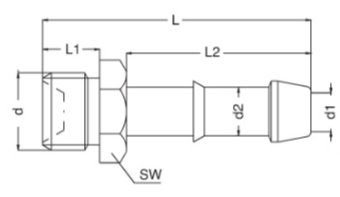

Ниппель с внешней резьбой под шланг
| Артикул | d | d1 | d2 | L | L1 | L2 | SW |
| KHL 17.13 | 3/8” | 9 | 13 | 72 | 12 | 53 | 19 |
| KHL 17.16 | 3/8” | 11 | 16 | 72 | 12 | 53 | 19 |
| KHL 21.13 |
1/2” |
9 | 16 | 74 | 14 | 53 | 23 |
| KHL 21.16 |
1/2” |
11 | 13 | 74 | 14 | 53 | 23 |
| KHL 21.19 | 1/2” | 11 | 16 | 74 | 14 | 53 | 23 |
| KHL 26.19 | 3/4” | 15 | 19 | 78 | 16 | 53 | 27 |
| KHL 26.25 | 3/4” | 19 | 25 | 80 | 16 | 53 | 27 |
| KHL 33.19 | 1” | 15 | 19 | 84 | 20 | 53 | 35 |
| KHL 33.25 | 1” | 19 | 25 | 84 | 20 | 53 | 35 |
